LED Letters with Contour LEDs, h-300mm

LED Letters with Contour LEDs, h-300mm

For orders from	Price
1 pcs	58.00 $
3 pcs	56.00 $
5 pcs	55.00 $
7 pcs	54.00 $
10 pcs	52.00 $

Model range:

H=200 H=250 H=300 H=400 H=500 H=600 H=700

Product code: 11-13131-03

Production time 7-10 days

57.92 $/pcs

+ -

pcs

To the cart

Quote

Order options:

LED colour:

Green LEDs

Green LEDs
Red LEDs
White LEDs

Number of outlines:

1 LED outline

1 LED outline
2 LED outlines

Controller:

Without controller

Without controller
6-channel controller for dynamic lighting	+1213.83 $

Product line:

About product

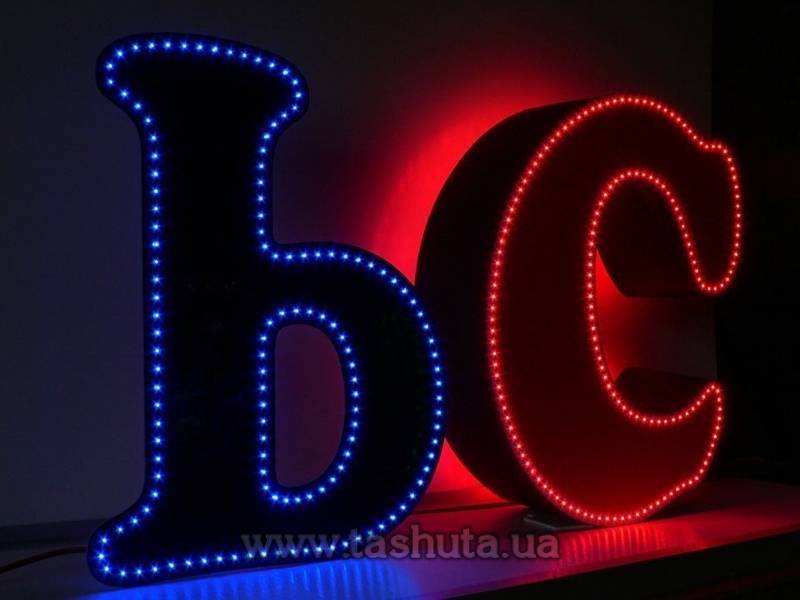

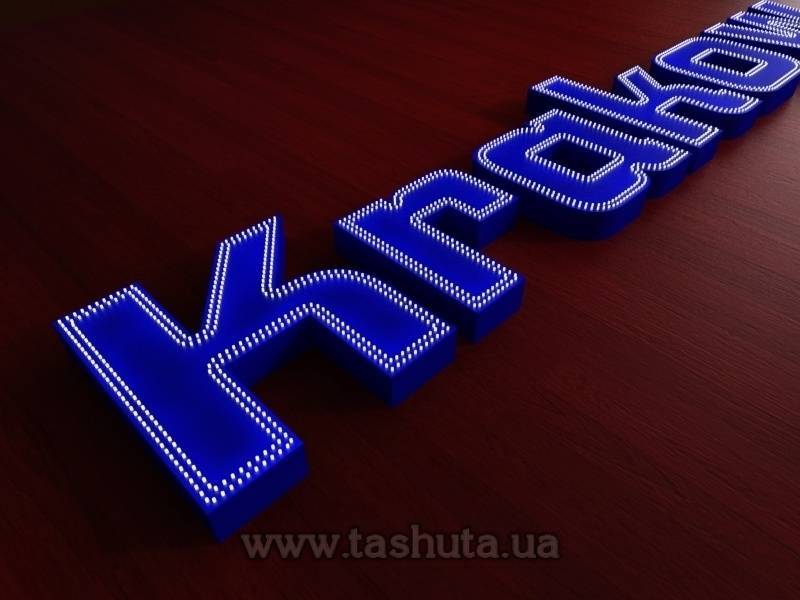

About product LED Letters with Contour LEDs, h-300mm

The letters are made with exposed diodes (pixel module) in protective sealed silicone. The diode design allows them to be mounted very close to each other. The light from the diodes is visible even in daylight.

Face:	Acrylic 3 mm covered with Oracal 641 film
Housing:	PVC plastic 4mm
Sides:	covered with coloured Oracal 641 series film (Germany)
Production method:	laser cutting, bonding PVC plastic to acrylic
Electrical components:	LED pixel module (white, red, green, blue, yellow)
Diode pitch:	20mm
Number of contours:	1 contour
Number of LEDs:	40 pcs
Letter depth:	80-120mm
Letter height:	300mm
Optional extra:	Controller for dynamic lighting (flashing in different combinations)

The price is based on 40 LEDs per 1 letter.

Depending on the font, the number of LEDs may go up or down.

To order LED letters to your own artwork, attach the file when placing your order

Software calculates the correct layout of the LED pixel module, after which holes are cut in the face on a CNC milling machine and the diodes are fitted into them. The letters are then connected to a controller (if dynamic effects are needed) and to the power supply, after which the letter housing is closed.

Example of LED placement along the contour for a letter height of 1000mm

Letter with LEDs along the contour

Pixel colours available:

white
green
yellow
blue
RGB LEDs

For accurate mounting of the letters directly on the wall, use stencils

Or use a metal frame: in this option all letters are fixed to the frame at our workshop

HOW TO CHOOSE A FONT FOR A SIGN

WHICH COLOUR TO CHOOSE FOR A SIGN

HOW TO GET THE SIGN SIZE RIGHT
