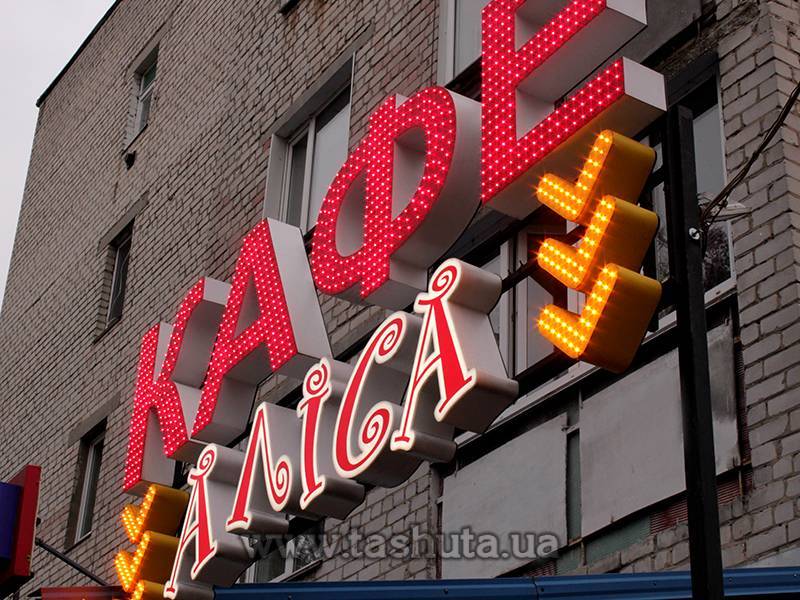

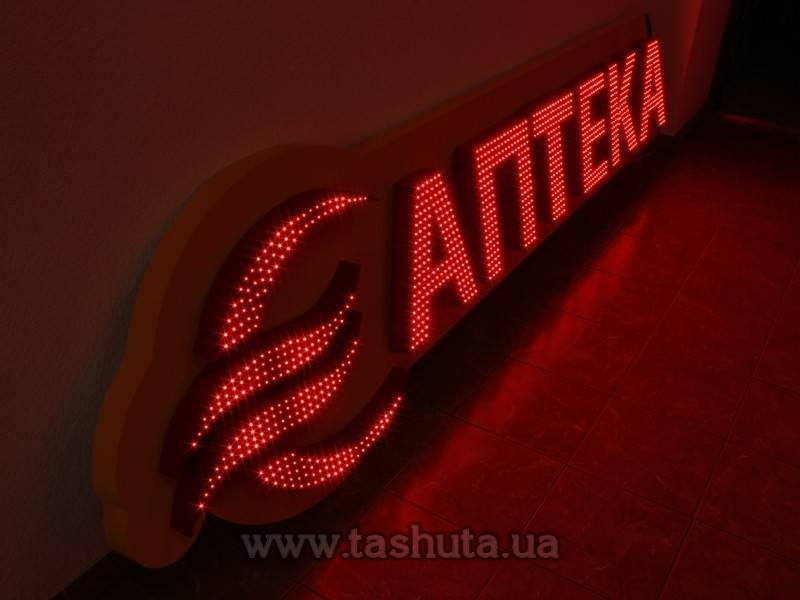

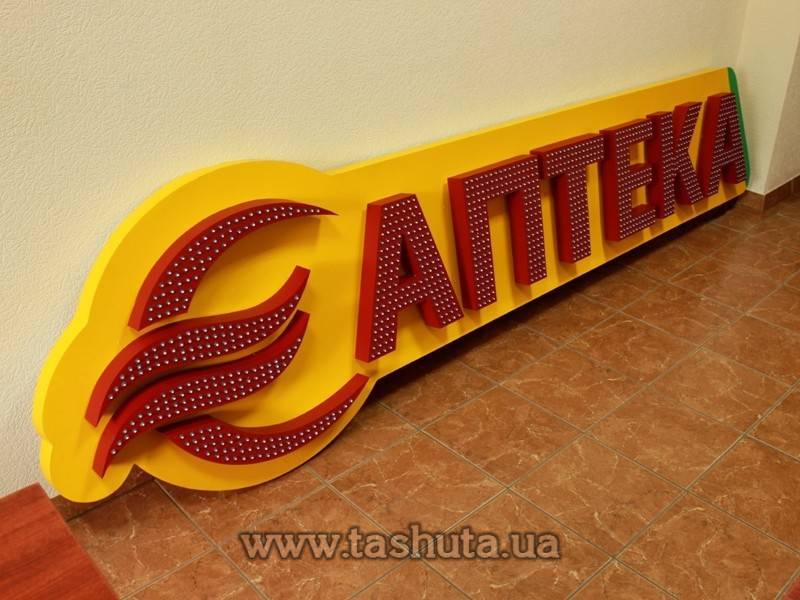

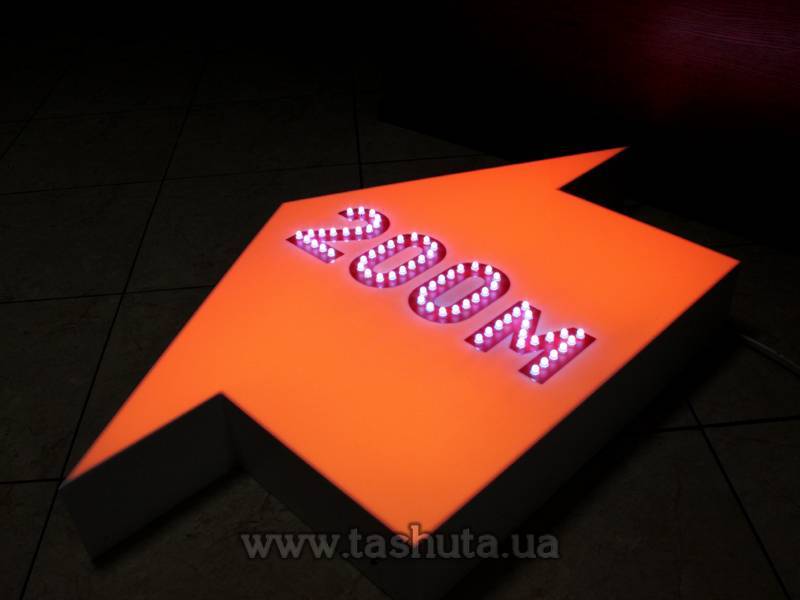

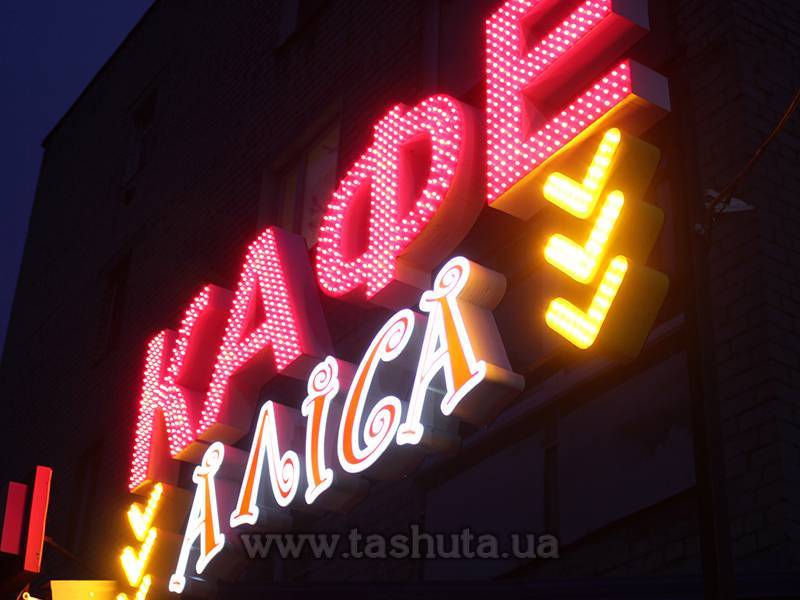

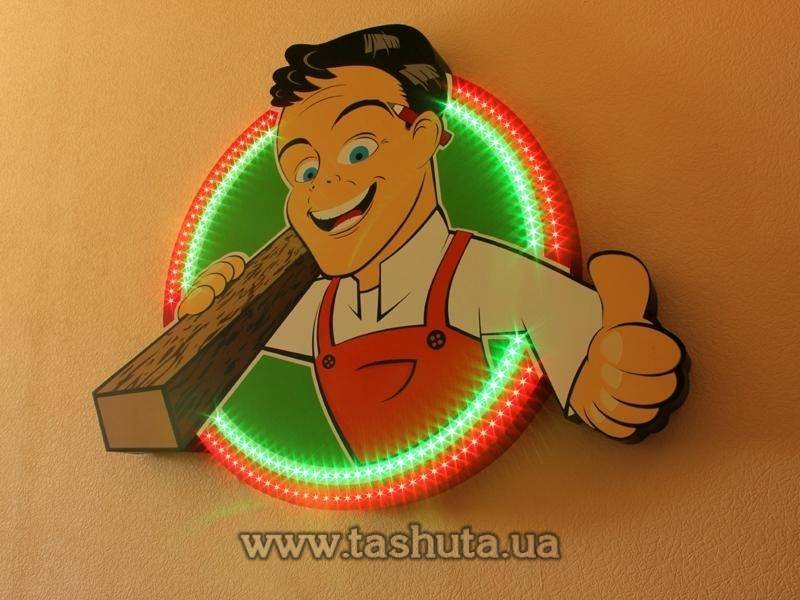

The light box is made with exposed LEDs (pixel modules) sealed in protective silicone. The LED design allows them to be mounted very close to each other. The light output is visible even in daylight.
Pixel colours available:
- white
- green
- yellow
- blue
- RGB diodes

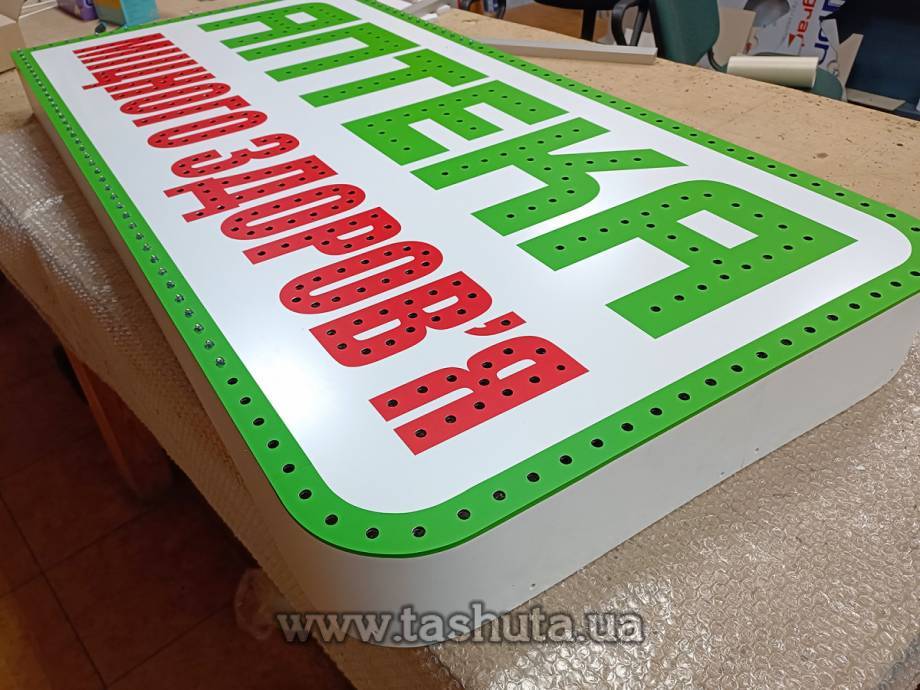

Software calculates the correct layout of the LED pixel module, after which holes are cut in the face on a CNC milling machine and the diodes are fitted into them. The letters are then connected to a controller (if dynamic effects are needed) and to the power supply, after which the letter housing is closed.
| Sign material: |
aluminium composite panel with CNC-milled elements (letters, logo) |
| Frame: |
steel tube 20x20mm |
| Electrical components: |
LED pixel module (white, red, green, blue, yellow) |
| Number of LEDs: |
500pcs/m² |
| Light box depth: |
100-140mm |
| ACM colour: |
see colours |
The price is based on 500 LEDs per 1 m² of sign.
The price may go up or down depending on the font and the number of LEDs.
For more details, please contact our manager
We can make an illuminated sign from your artwork: just attach the files when placing your order.
Film application:
No application; ORACAL 641 series, 1 layer; ORACAL 641 series, 2 layers; Gold or silver, 1 layer
