This 550x500 mm customer information board with two A4 pockets is a small ACM panel. The header is separated from the panel not by a straight line but by a wave: on a board this size a straight band splits it in half and makes it look cut in two, while a curved line ties the top and bottom into a single whole.
| Overall size: | 550x500 mm |
| Material: | ACM 3 mm |
| Thickness: | 30 mm |
| Pockets: | 2 pcs A4 |
| Pocket type: | raised pocket or flat pocket |
| Print method: | Oracal film appliqué (Germany) |
| ACM colour: | ACM colour range |
| Film colour: | Oracal 641 film, 60 colours |
| Mounting: | keyhole hangers |
Two pockets — a deliberate minimum
Two documents are enough where there is almost no required set: a market stall, a workshop, a mobile till. The board takes up half a metre of wall and does not turn a working corner into an information wall.

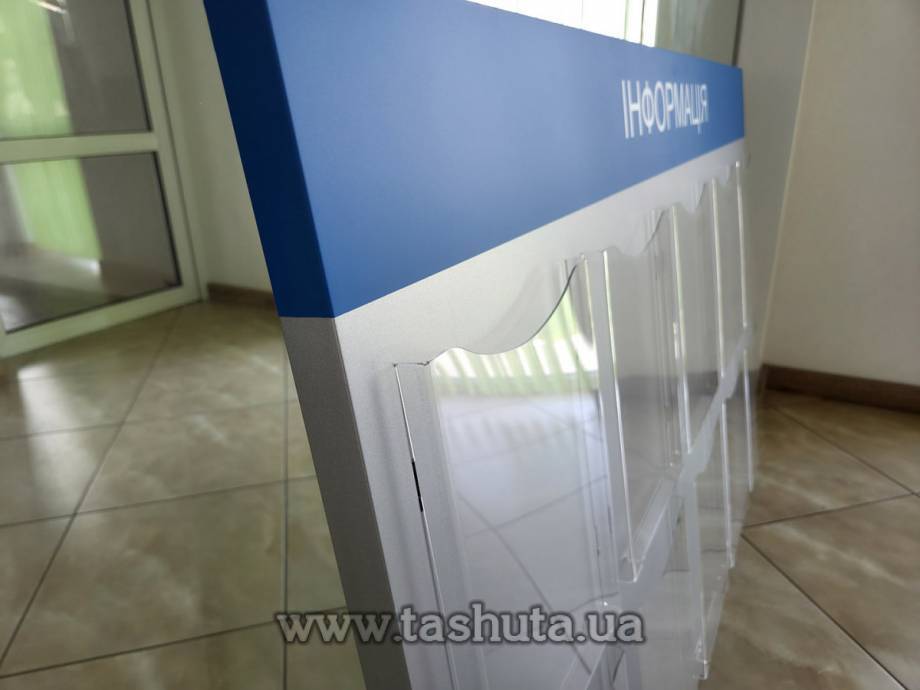

A wavy line instead of a straight one
Film can be cut along any curve, so the header edge can be a wave, an arc or a bevel. This follows from the appliqué technology itself: the outline is set by the artwork, not by the shape of the blank.

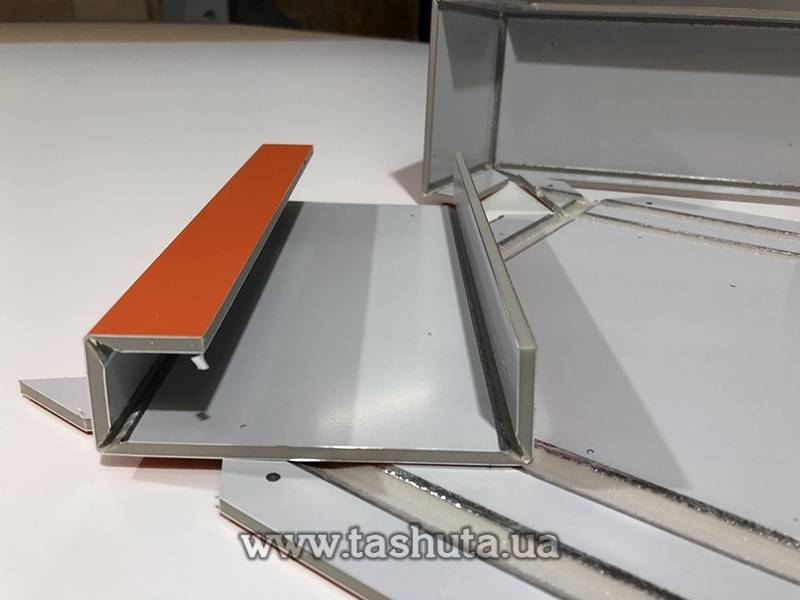

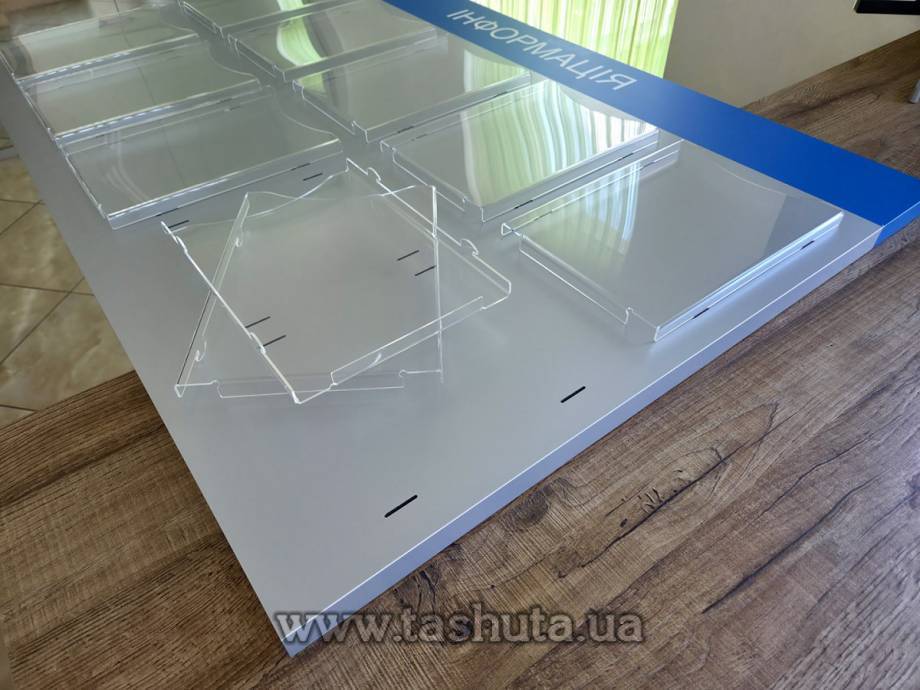

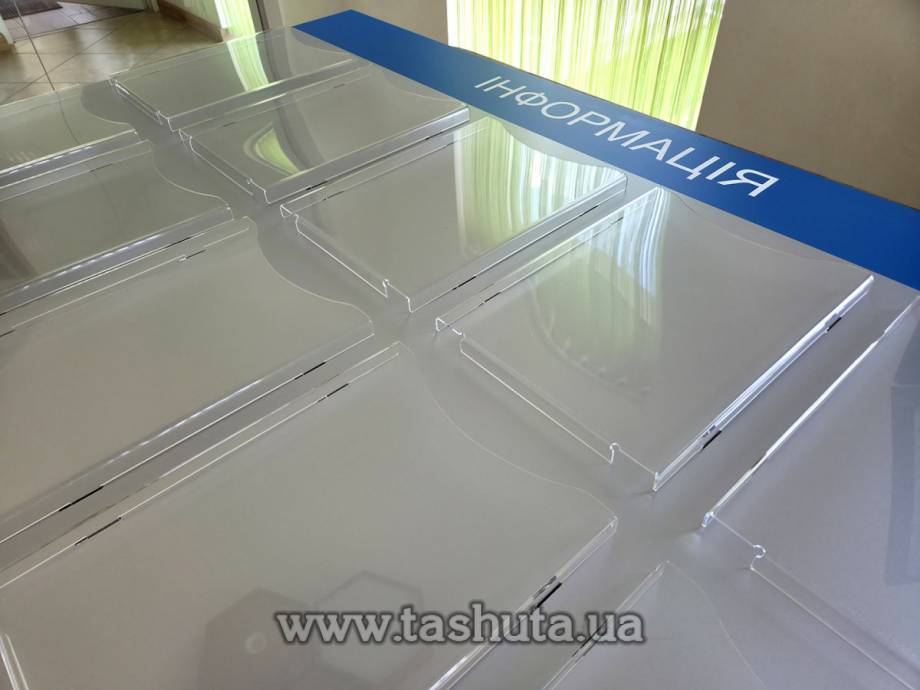

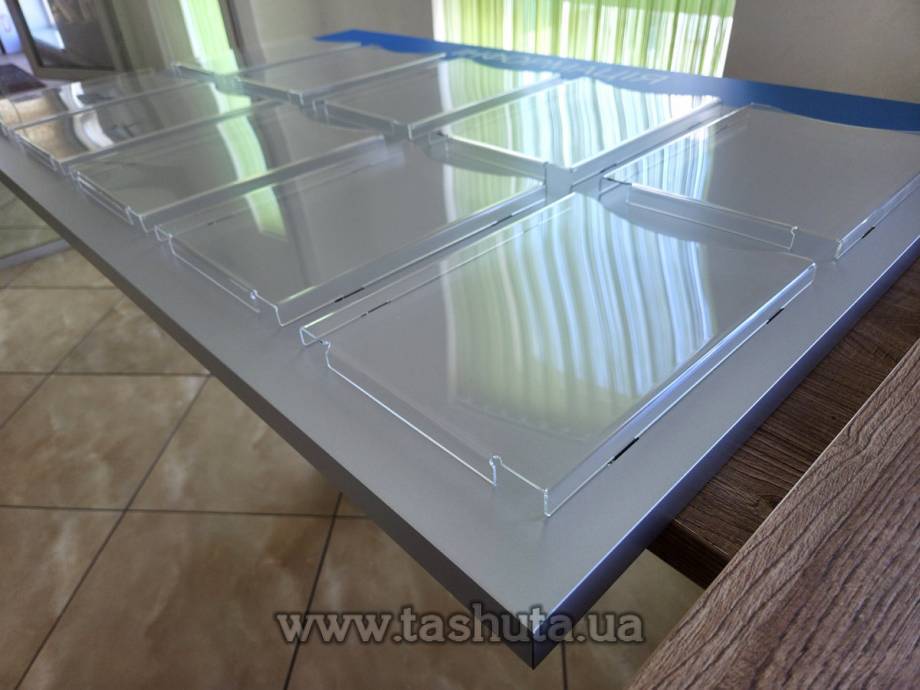

Pockets in slots
Both trays slot into the panel and can be removed. Clear plastic is easier to clean when taken off, and if damaged, only one pocket is replaced rather than the whole panel.
Mounted on keyhole hangers. The panel colour is chosen from the ACM colour range, and the graphics colour from the Oracal 641 palette. It goes in kiosks, workshops, staff entrances and small retail outlets.
- The pocket type and ACM colour are chosen when you order.
- Production time 3-7 days.
Composition:
Flat pocket; Expandable pocket
